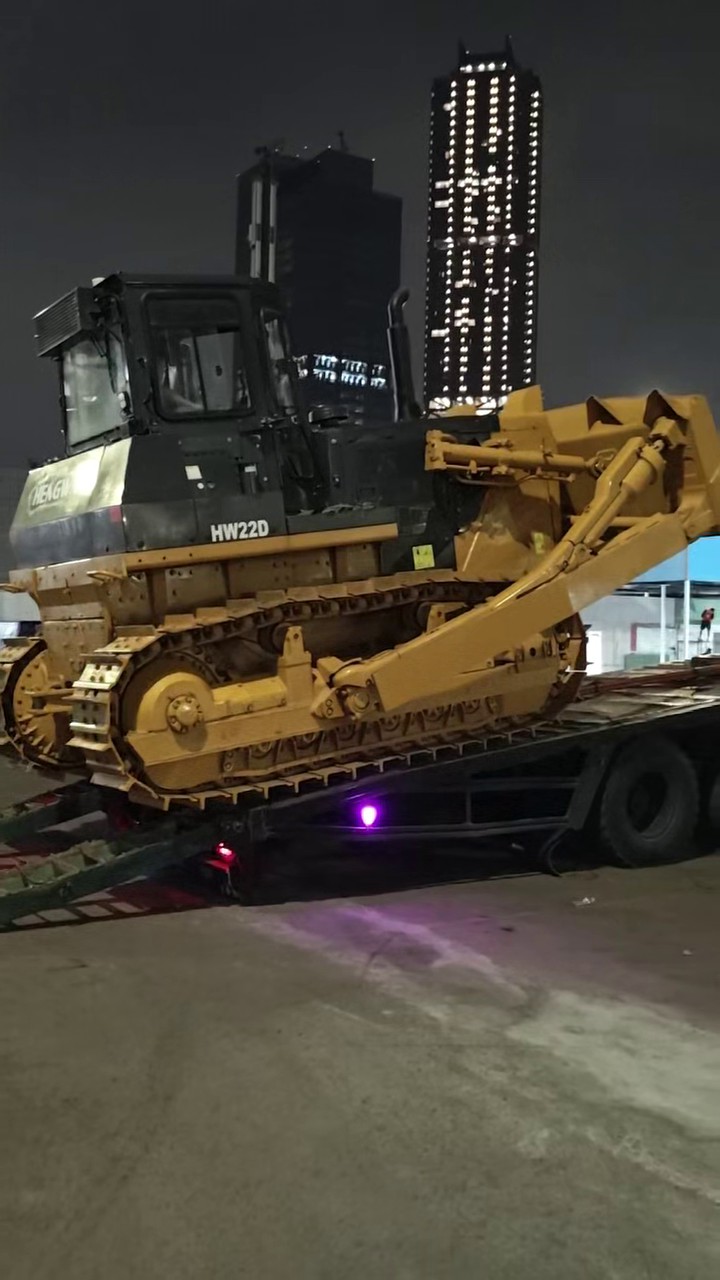

This week we loaded another crawler bulldozer at our Jakarta logistics yard — an HW22D, inspection-passed and ready for road transport to a coal mining operation in East Kalimantan. The video below was shot on the flatbed just before departure: city lights in the background, machine secured, and the HW22D badge clearly visible on the hood.
Why the HW22D Fits Kalimantan Mining
The HW22D is a 23-ton class crawler bulldozer built by our manufacturing partners. It is a proven machine for land clearing, haul-road maintenance, and overburden work in open-pit mines. In Kalimantan, where the ground alternates between dry-season hardpan and monsoon mud, contractors need a dozer that starts reliably and can be kept in the field without long parts waits.
Key specifications for this shipment:
| Parameter | HW22D |
|---|---|
| Engine | Cummins NT855-C280S10, 175 kW @ 1,800 rpm |
| Operating weight | 23,450 kg (with towing frame) |
| Dimensions | 5,750 × 3,725 × 3,402 mm |
| Ground pressure | 0.077 MPa |
| Track shoe width | 560 mm (610/660 mm optional) |
| Blade options | Straight-tilt / Angle / U-blade, 4.7–7.5 m³ |
| Fuel tank | 450 L |
| Transmission | Mechanical, 3 forward + 3 reverse |
What Makes the HW22D Cost-Effective in the Field
- Matched powertrain: torque converter efficiency up to 87%, claimed 4.5% fuel saving under rated load.
- Field service: the cab tilts for drivetrain access, and common filters/oils are standardized sizes.
- Operator comfort: six-sided cab with air conditioning and electronic throttle, important for long shifts.
- Adaptability: available with swamp tracks, ripper, winch, or towing frame for Indonesian site conditions.
Delivery and Local Support
This unit left our Jakarta yard by flatbed at night, transited to the port area, and is now en route to the customer’s mine. Typical door-to-site transit time is 5–7 days to Kalimantan.
Every HW22D shipment includes:
- Pre-delivery inspection (PDI) and test report
- Operator manual in Bahasa Indonesia
- First service kit (filters, engine oil, grease)
- 12-month warranty on drive-train components
Parts Availability
High-wear HW22D components — track links, sprockets, idlers, rollers, cutting edges, and blade pins — are stocked in our Jakarta warehouse. No three-month lead time for parts that wear out every quarter.
Need a crawler bulldozer quote? Message us on WhatsApp for pricing and availability. We deliver across Indonesia — Sumatra, Java, Kalimantan, Sulawesi, and Papua.
